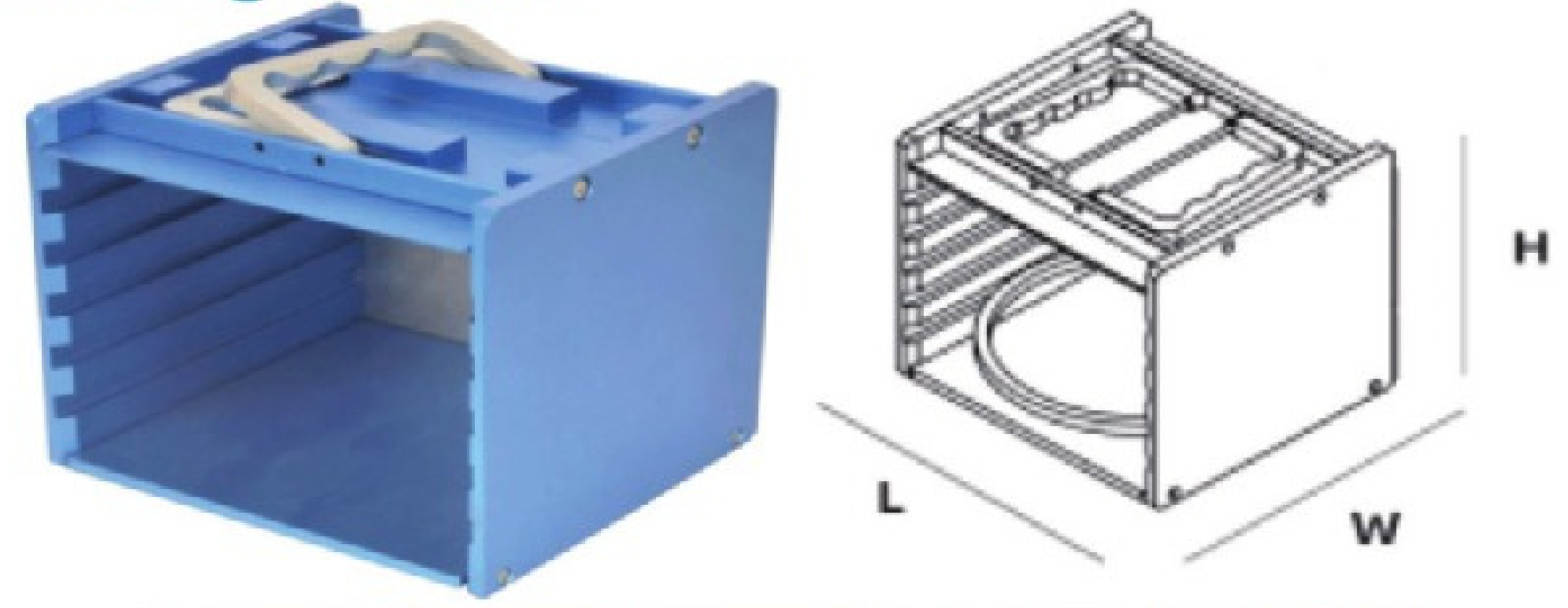

扩晶环提篮
专家设计 扩晶环提篮，适合行业所用尺寸的扩晶环，用6061铝型材来加工，表面阳极化处理，美观实用。

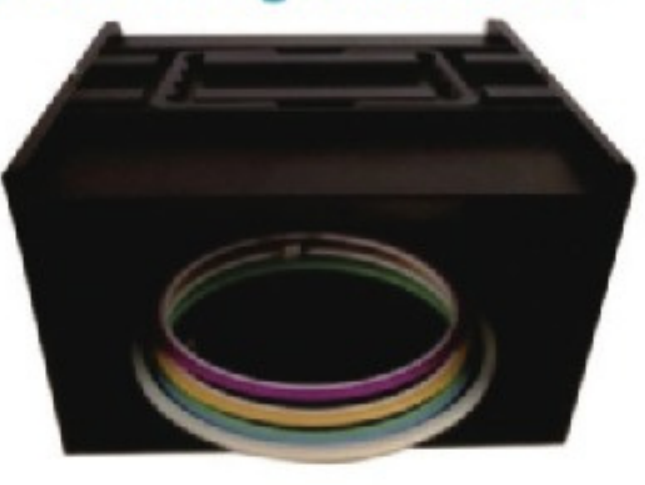

5槽扩晶环提篮

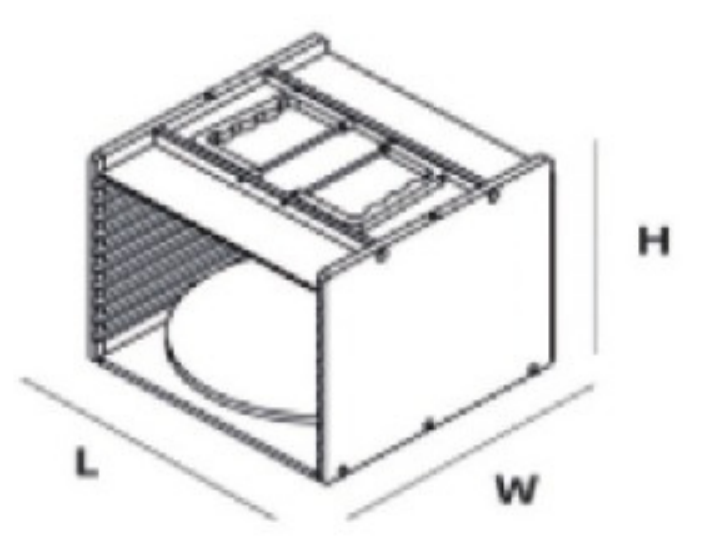

| Cassetle size | code | 扩晶环外尺寸 | 槽宽 | 槽距 | L | W | H |
| 5slots-4 | DSF23A04 | ø116 | 9 | 20 | 122 | 126 | 140 |
| 5slots-5 | DSF23A05 | ø135 | 9 | 20 | 141 | 145 | 140 |
| 5slots-6 | DSF23A06 | ø152 | 9 | 20 | 158 | 162 | 140 |
| 5slots-7 | DSF23A07 | ø186 | 9 | 20 | 192 | 196 | 140 |
| 5slots-8 | DSF23A08 | ø212 | 9 | 20 | 218 | 222 | 140 |
| 5slots-10 | DSF23A10 | ø249 | 9 | 20 | 255 | 259 | 140 |
| 5slots-12 | DSF23A12 | ø347 | 9 | 20 | 351 | 355 | 140 |

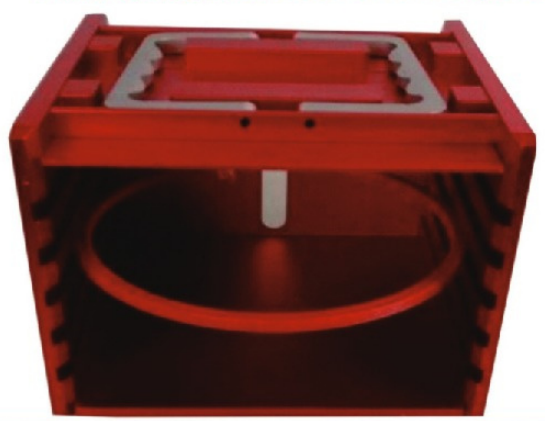

10槽扩晶环提篮
| Cassetle size | code | 扩晶环外尺寸 | 槽宽 | 槽距 | L | W | H |
| 10slots-4 | DSF23U04 | ø116 | 9 | 15 | 122 | 126 | 184 |
| 10slots-5 | DSF23U05 | ø135 | 9 | 15 | 141 | 145 | 184 |
| 10slots-6 | DSF23U06 | ø152 | 9 | 15 | 158 | 162 | 184 |
| 10slots-7 | DSF23U07 | ø186 | 9 | 15 | 192 | 196 | 184 |
| 10slots-8 | DSF23U08 | ø212 | 9 | 15 | 218 | 222 | 184 |
| 10slots-10 | DSF23U10 | ø249 | 9 | 15 | 255 | 259 | 184 |
| 10slots-12 | DSF23U12 | ø347 | 9 | 15 | 351 | 355 | 184 |
